Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range

Product Categories

Shaanxi Shinhom Enterprise Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Custom Design Shielded Smd Power Inductors 022uh 10uh Inductance Range
Brand: Shinhom
Price: 1 USD

Brand Name : Shinhom

Model Number : HR Series

Certification : RoHS

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000000/MONTH

Delivery Time : 4~8 Weeks

Packaging Details : Carton

Structure : Shielded

Installation : SMT

Inductor Value : Fixed Inductor

Operating Temperature : -40℃ - +125℃

Storage temperature : -40℃ - +125℃

Inductance range : 0.22uH to 10uH

Contact Now

HR Series high current power inductors,Surface Mount choke coil,SMD inductor

FEATURES:

TEST EQUIPMEN AND CONDITIONS:

All test Data is referenced to 25℃ambient.
Testing Instrument: L: HP4192A, CH1302, CH3320, CH3320S LCR METER / Ddc:
Agilent33420A Micro OHMMETER.
Test condition: 100KHz,0.1V
Irms will cause the coil temperature rise ApproximatelyΔT=40℃ without core loss.
Isat will cause L0 to drop approximately 30%.
The part temperature (ambient + temp rise) should not exceed 125℃ under worst
case operating conditions.
Operating Temperature & Storage Temperature: -25℃ - +125℃.

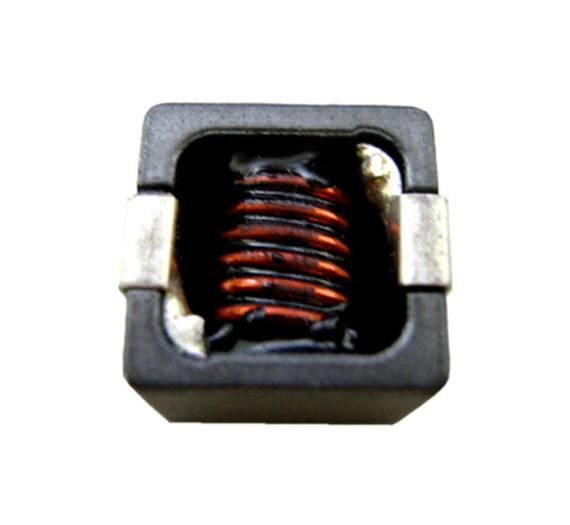

Custom Design Shielded Smd Power Inductors 0.22uh - 10uh Inductance Range

Note: Product specifications can be customized.

Product Tags:

high current inductors chokes
