AC 2KV Enameled Wire Toroidal Choke Coil Inductor Low Resistance

Toroidal Choke Coils , Toroidal Inductor , Common Mode Inductor

Toroidal Inductors provide a number of advantages over other inductor varieties, which include:
Compact Size - The smaller size of Toroidal Inductors allows for excellent efficiency while maintaining top level performance. Lower Cost - With smaller sizes that use less raw materials, Toroidal Inductors are a highly economical choice.

Specifications:

• Rated voltage: AC/DC 230V
• Withstand voltage level: AC 2KV, 1 minute
• Insulation resistance: DC 500V, 100ohm, min
• Insulation level: B (130℃)
• Operating temperature range: -25℃ - 85℃
• Minimum inductance range: 4.7uH-20mH 1kHz
• Rated current range: 0.2-30A

Features:

• High frequency and low loss
• Toroidal inductor
• For excellent EMI suppressor
• Small profile
• Large current
• Low resistance
• MPP, hi-flux, sendust/RF carbonyl, and iron power core
• SMT and low profile available
• RoHS compatible (Pb free) versions available
• Good frequency characteristic

Application:

• Widely applied in various switching power suppliers and high frequency electronic equipment
• Power line filtering, EMI/RFI for switch mode power supplies

Notes: Customized is available

Toroidal Choke Coil Inductor

AC 2KV Choke Coil Inductor

EMI Suppressor Choke Coil Inductor

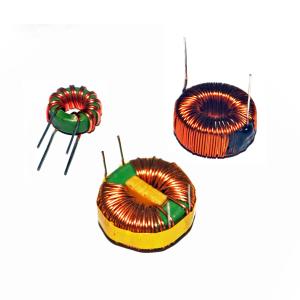

AC 2KV Enameled Wire Toroidal Choke Coil Inductor Low Resistance Images
