SMD Common Mode Ferrite Core Choke Plastics Toroidal Coils

SMD Common Mode Inductor , Toroidal Common Mode Choke Coils , Common Mode Choke With Plastic Base

Common mode inductor, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers. In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.
Toroidal Inductors provide a number of advantages over other inductor varieties

1. High current capacity
2. Low core loss at frequency
3. High reliability, efficiency
4. Small packaged size
5. Operating Temperature: -30°C to +80°C
6. Electrical Specifications at 20°C

Application:

1. Compact fluorescent lamp
2. Television receiver
3. Radio cassette player
4. PC power supply
5. Monitor,audio,VCD,DCD
6. UPS
7. The electronic apparatus
8. The noise rejection
9. Induction cooker,etc.

Features:

1. High operation frequency
2. Wide range of working voltage
3. Large power
4. Low temperature rising
5. Compact, light and easy surface mounting
6. Customized designs and specifications are accepted
7. High power and compact design
8. Utilizing high flux density ferrite cores with low loss and low temperature rise
9. High magnetic flux and low-loss magnetic materials
10. With low leakage inductance and high-efficiency
11. Highest reliability of high-voltage
12. Advanced production technique and reliable full-automatic testing facilities
13. Customized specifications are welcome

Toroidal Common Mode Choke Coils

Ferrite Core Choke SMD

Toroidal Common Mode Filters

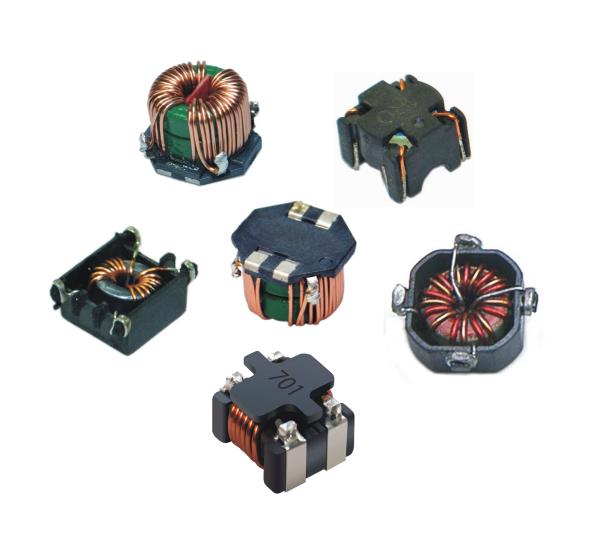

SMD Common Mode Ferrite Core Choke Plastics Toroidal Coils Images
